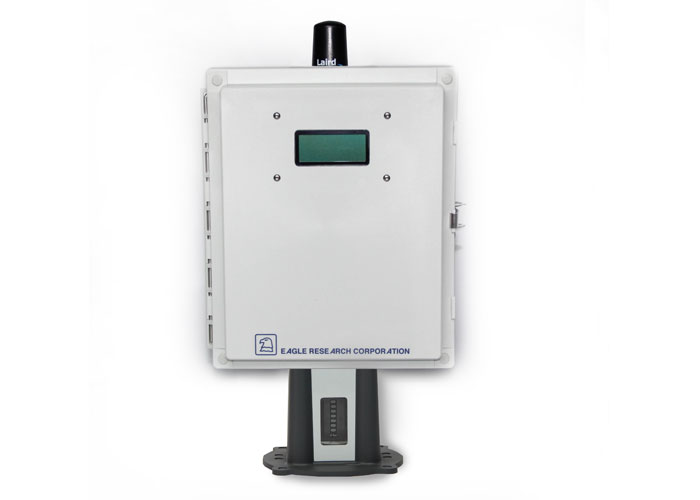

The XARTU/1™-LDVI-AAT Volume Corrector was designed to work alongside the Sensus Auto-Adjust™ turbine meter. The AAT Corrector works with the Auto Adjust to provide a more cost effective solution for your high volume and high valued measurement needs. It is installed directly on the meter and is light enough to be installed by just one person. The AAT Monitor then provides frequency outputs for adjusted uncorrected flow, as well as true live flow rates with optional analog outputs.
Features include:
- Embedded Sensus Auto-Adjust™ algorithms certified by Sensus™
- Live GC inputs
- AGA 5, AGA 7, AGA 8 Detailed and Gross Methods I & II, & NX-19 calculation when required
- Optional live 4-20mA or frequency output for instantaneous flow rate
- Configurable via RS232 for Modbus Communication
- Optional RS485 with expansion board
- Optional wireless communications (cellular/radio/satellite)
- Live graphing of main/sense frequencies in field manager
